Sistema completo da câmera do endoscópio de HD
Created with Pixso. TUYOU TV-LSH101B 1080P Integrated LED Light Source Medical Endoscopy Camera /Laparoscope/ENT/Custom

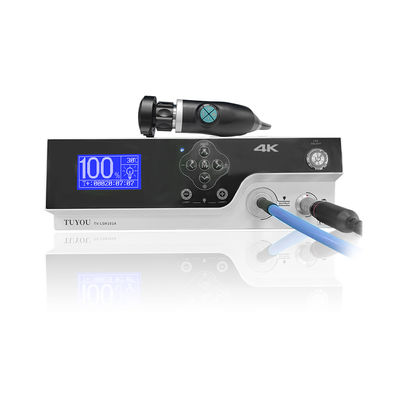

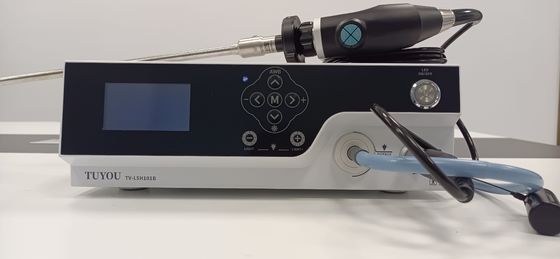

TUYOU TV-LSH101B 1080P Integrated LED Light Source Medical Endoscopy Camera /Laparoscope/ENT/Custom

Nome da marca: TUYOU
Número do modelo: TV-LSH101B
MOQ: 1 conjunto
Tempo de entrega: dias 3-15work
Condições de pagamento: T/T, Western Union
Informações pormenorizadas
Lugar de origem:
CHINA
Certificação:
CE FDA ISO13485
Tipo:
Endoscópio
Classificação do instrumento:
Classe I.
Marca:
TUYOU
Número do modelo:
TV-LSH101B
Propriedades:
Sistema de imagem para médico
Nome do produto:
Câmera médica de endoscópio
Sensor de imagem:
Sony CMOS de 1/2,8 "
Palavras -chave:
Equipamento médico
Resolução:
1080p
Detalhes da embalagem:
Tamanho da caixa: 26*48,5*47cm, 10,5kg
Habilidade da fonte:
1000 por mês
Descrição do produto
Introducing Our Advanced Endoscope Imaging System

Our advanced endoscopic imaging systems integrate optics, electronics, and precision mechanics, seamlessly integrating with various endoscopes (such as otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes) to support a wide range of clinical scenarios, from ENT diagnostics to urology and gynecological interventions. Combined with medical-grade display technology, they deliver images in Full HD and even 4K resolution, ensuring exceptional clarity, color reproduction, and detail, providing reliable support for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, some models support touch control and anti-interference features, striving to improve surgical efficiency and patient outcomes.


Product Composition Introduction:

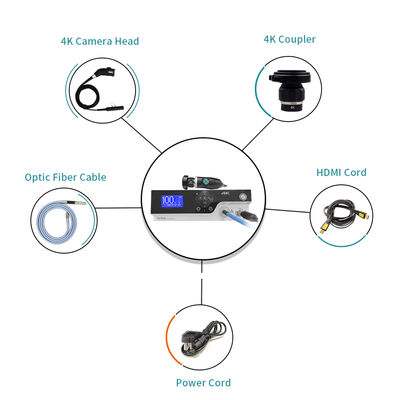

The endoscope light source imaging system consists of a camera control system, a handle camera, a light guide and an optical adapter (optical interface).

  • Self-contained video recording system, self-contained light source, and self-contained display screen;
  • Two built-in USB  image storage,and 1080P.
  • A variety of output signals, can be connected to an external monitor;
  • One-key freeze, one-key white balance, one-key zoom in and out;
  • With high-definition photo/video function;
  • Brightness memory function, the brightness of the LED light source is not initialized with the shutdown, and automatically memorizes the brightness before shutdown after the startup

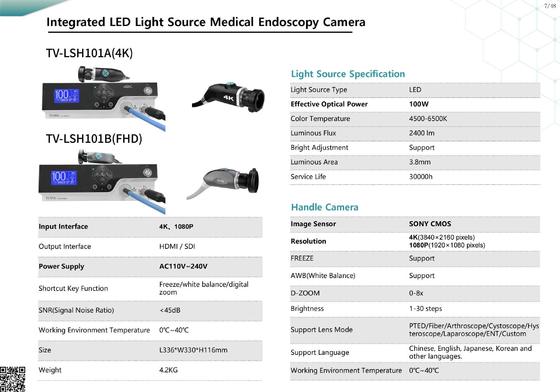

Specification
Certificates FDA/CE/ISO13485
Power Voltage AC110-240V
Camera Sensor Size 1/2.8" SONY CMOS

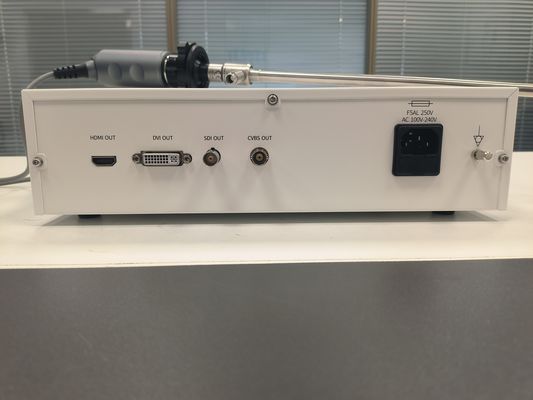

Video Output Interface HDMI/DVI/VGA/CVBS/SDI
Resolution 1080P(1920*1080P)
AWB One Key AWB
Freeze One Key Freeze
Application Laparoscopy/Gynecology/Urology/E.N.T Surgery,etc.
SNR More than 42Db(AGC off)
Warranty 2 Years
Light Source Parameters:


Packing & Delivery
Company Profile
FAQ

Q: Are you a factory or a trading company?

A: We are a Chinese medical imaging instruments manufacturer. All the products are made of our workers, we have 4 production lines and R&D team.

Q: Where are you ?

A: Our adress is buliding 3,Yunchuang Valley Southern Pacific, Fenghuang District, Shenzhen City, Guangdong Province, China.You are welcomed to visit our factory.

Q: Can you accept OEM?

A: Yes, we offer "TUYOU" brand to you. But if you need, we can also offer OEM service.

Q: What's your deliver time?

A: It will be delivered within 7 working days upon your payment; Samples are ready-made.

Q: What is the warranty?

A: The free warranty is two years. If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

Q:What's the payment term?

A.We accept payment by T/T Bank Transfer, Alibaba Trade Assurance Service, Western Union, Money Gram, Paypal, L/C, Cash etc.
